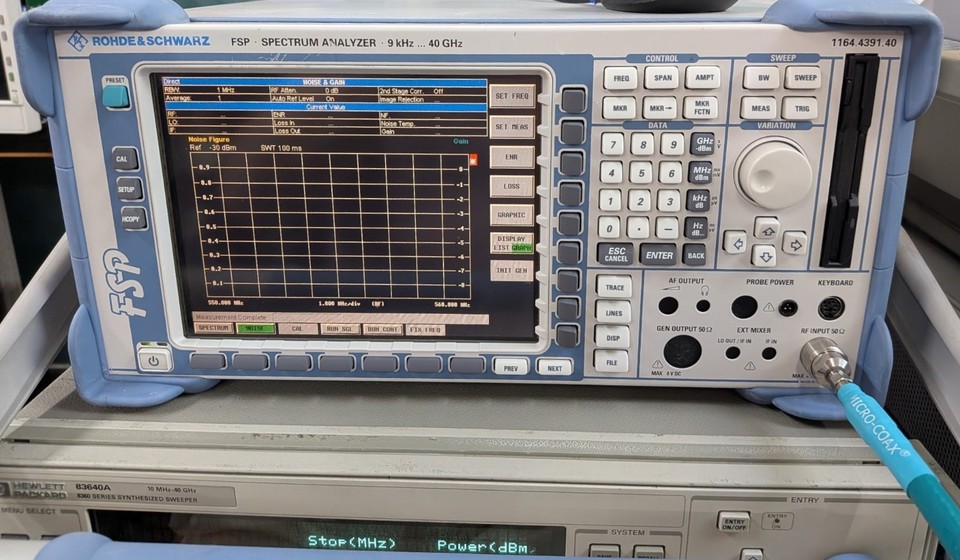

Special 10% discount + free shipping for Rohde & Schwarz Model FSP38 Spectrum Analyzer Unit. Limited offer. Grab it Fast !
Details of Product :
- Frequency range: 9 kHz to 40 GHz
- Optional low-frequency extension: 20 Hz to 40 GHz (Option FSP-B29)
- Frequency resolution: 0.01 Hz
- Maximum span: 40 GHz
- Zero span: Yes
- Display; Color TFT LCD
- Internal reference: 10 MHz
- Aging: 1 × 10⁻⁷/year (after 30 days)
- Temperature drift: 1 × 10⁻⁸ (0–50 °C)
- External reference: 10 MHz input
- RBW range: 1 Hz to 10 MHz
- RBW filters: 1/2/3/5 sequence
- VBW range: 1 Hz to 10 MHz
- FFT capability: Supported for narrow spans
- Displayed average noise level (DANL): Typically −155 dBm/Hz (with preamplifier, model/options dependent)
- Maximum safe RF input: +30 dBm (1 W)
- DC input: 0 V
- Input attenuation: 0–75 dB (5 dB steps)
- Level measurement uncertainty: Typically ±0.5 dB
